Eurorack Module

Patch Converters

Format conversion between banana, minijack & 1/4’jack


Patch Converter PCV2 New Version

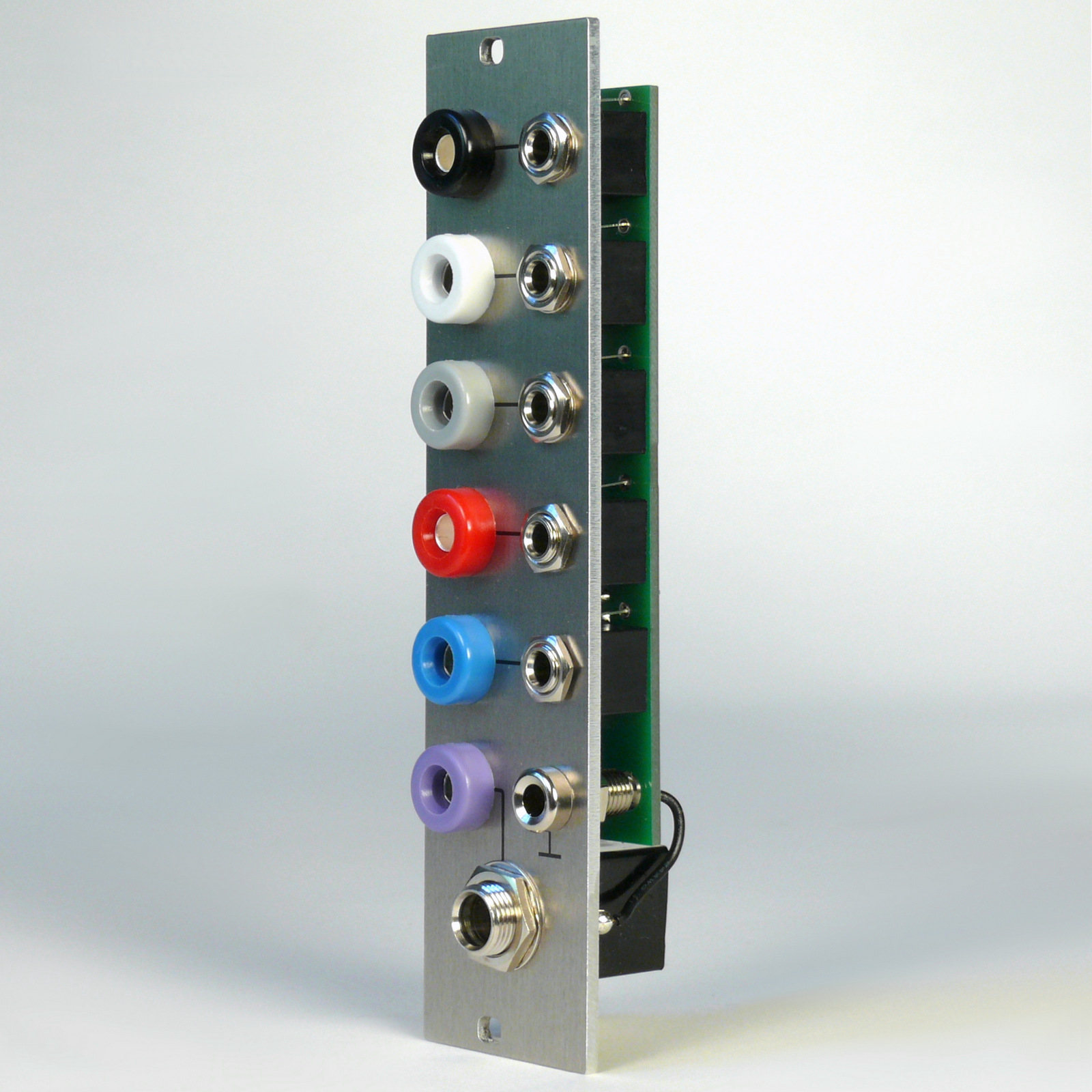

PCV2 New Version

Adapter module for conversion between banana↔minijack and banana↔1/4′ jack

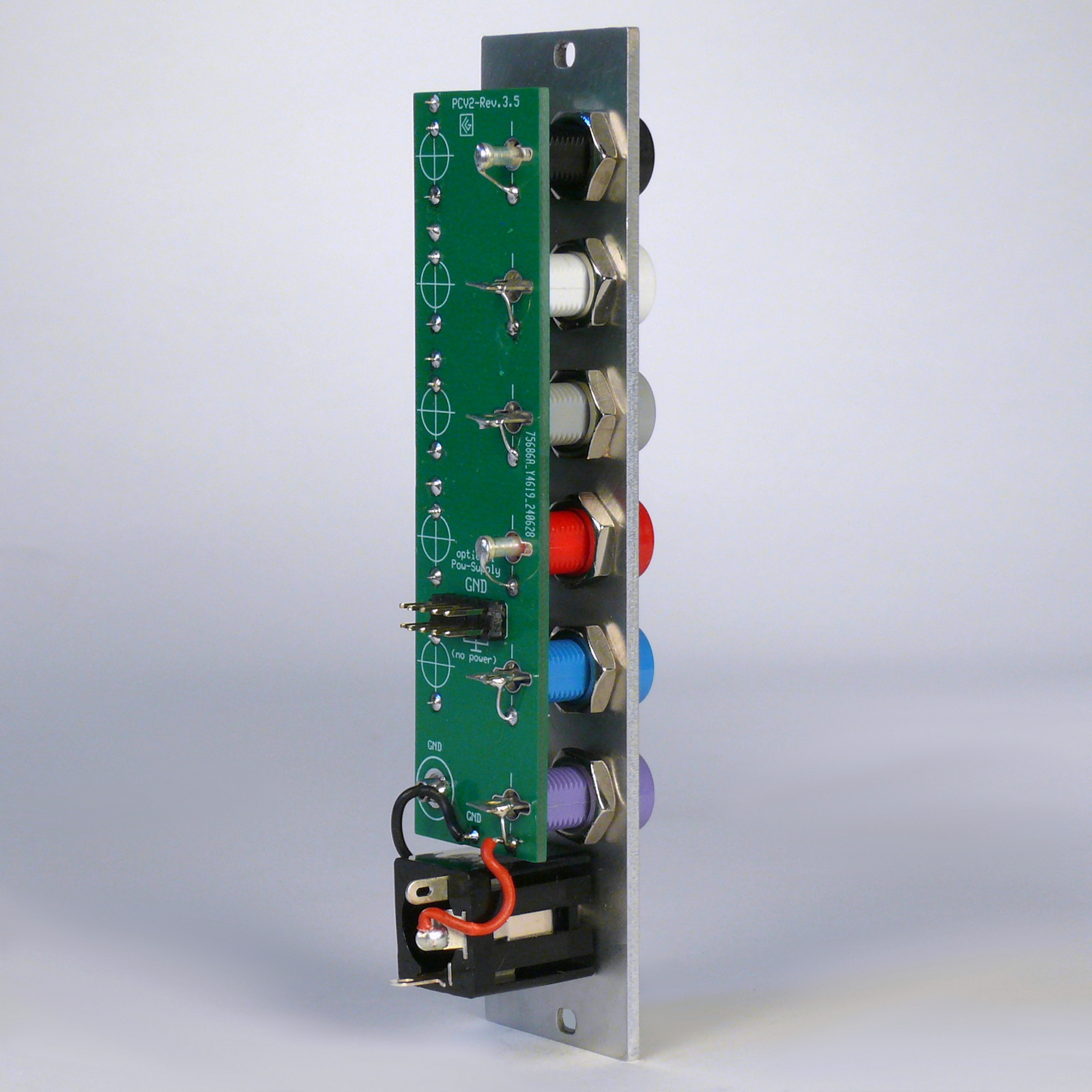

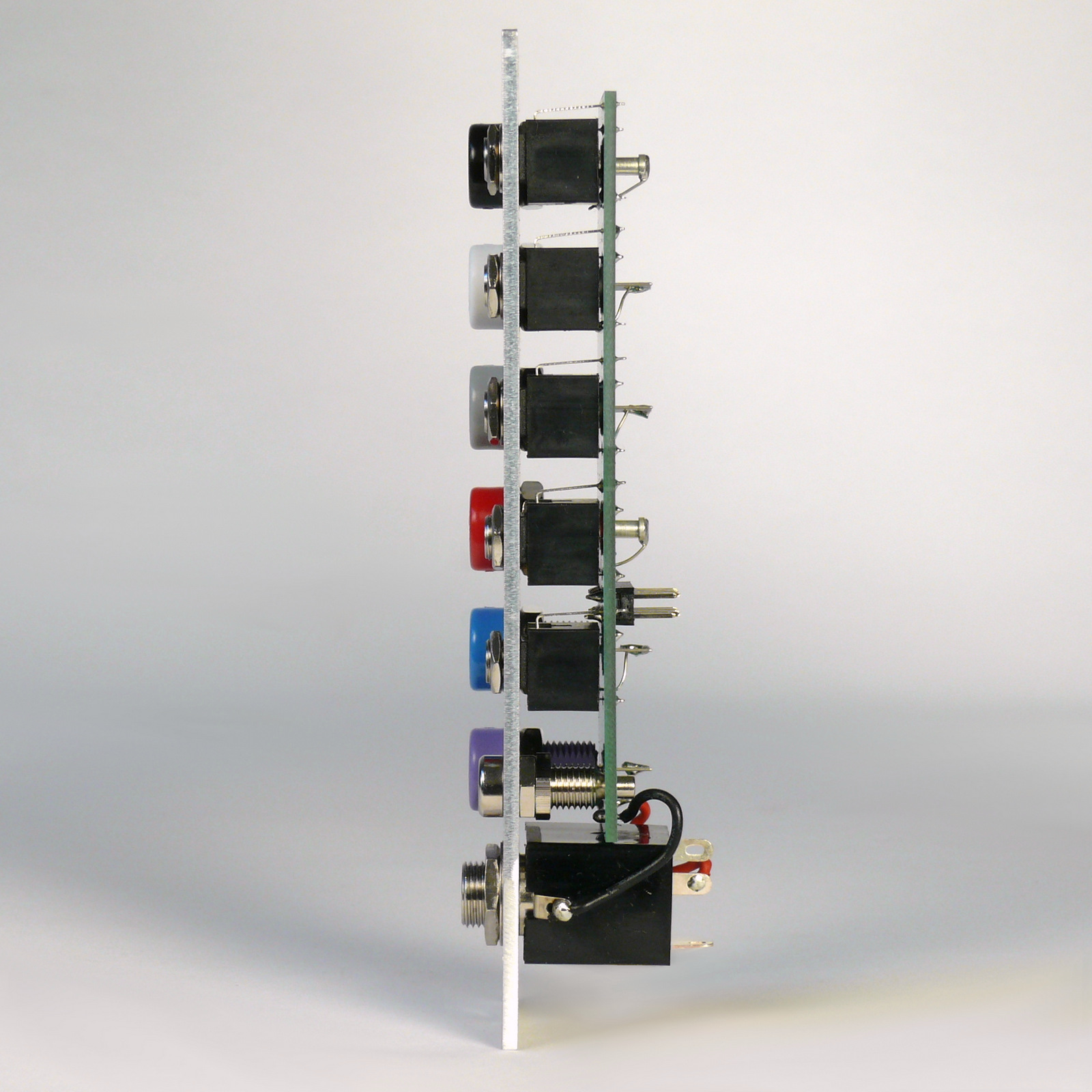

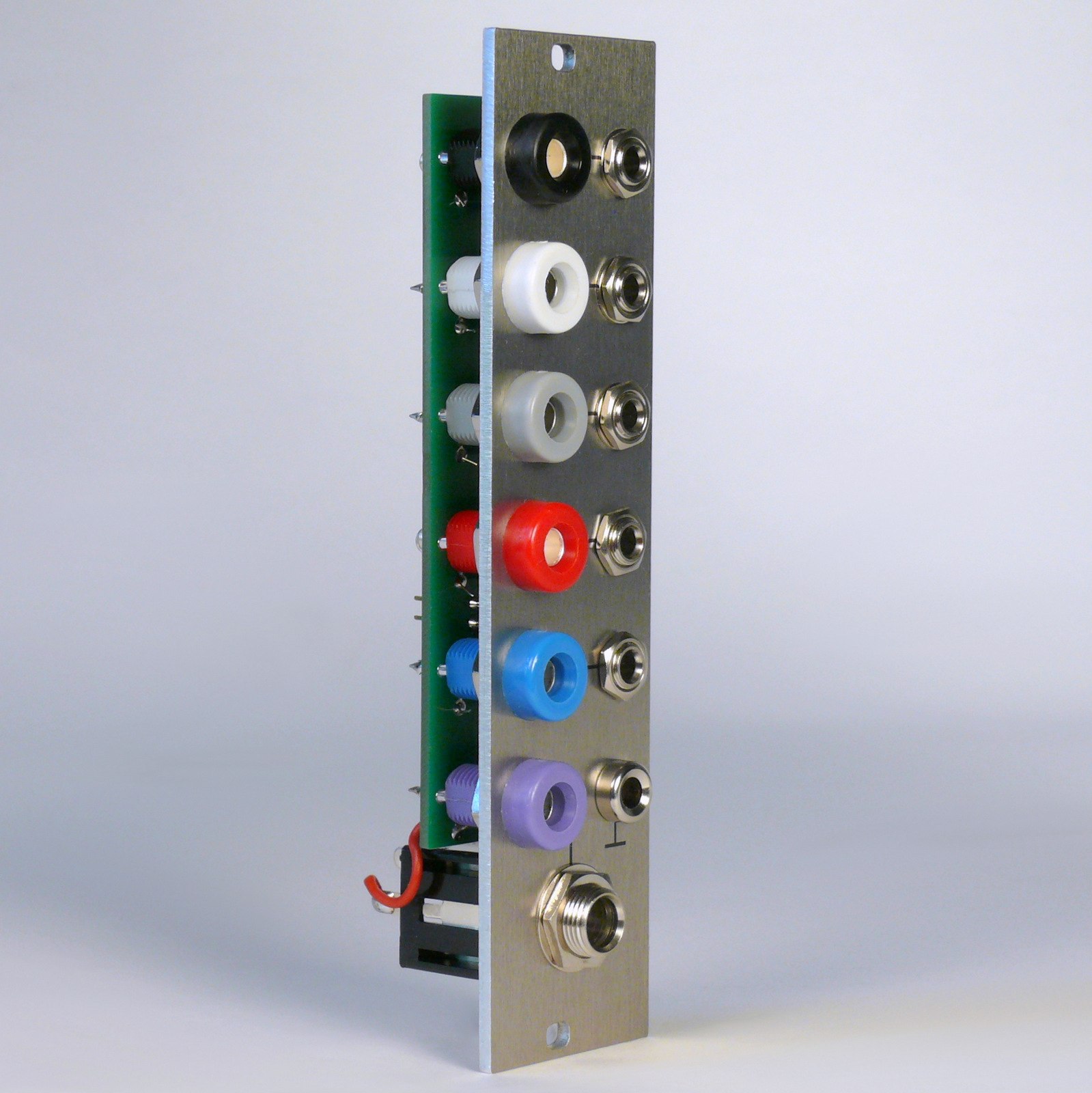

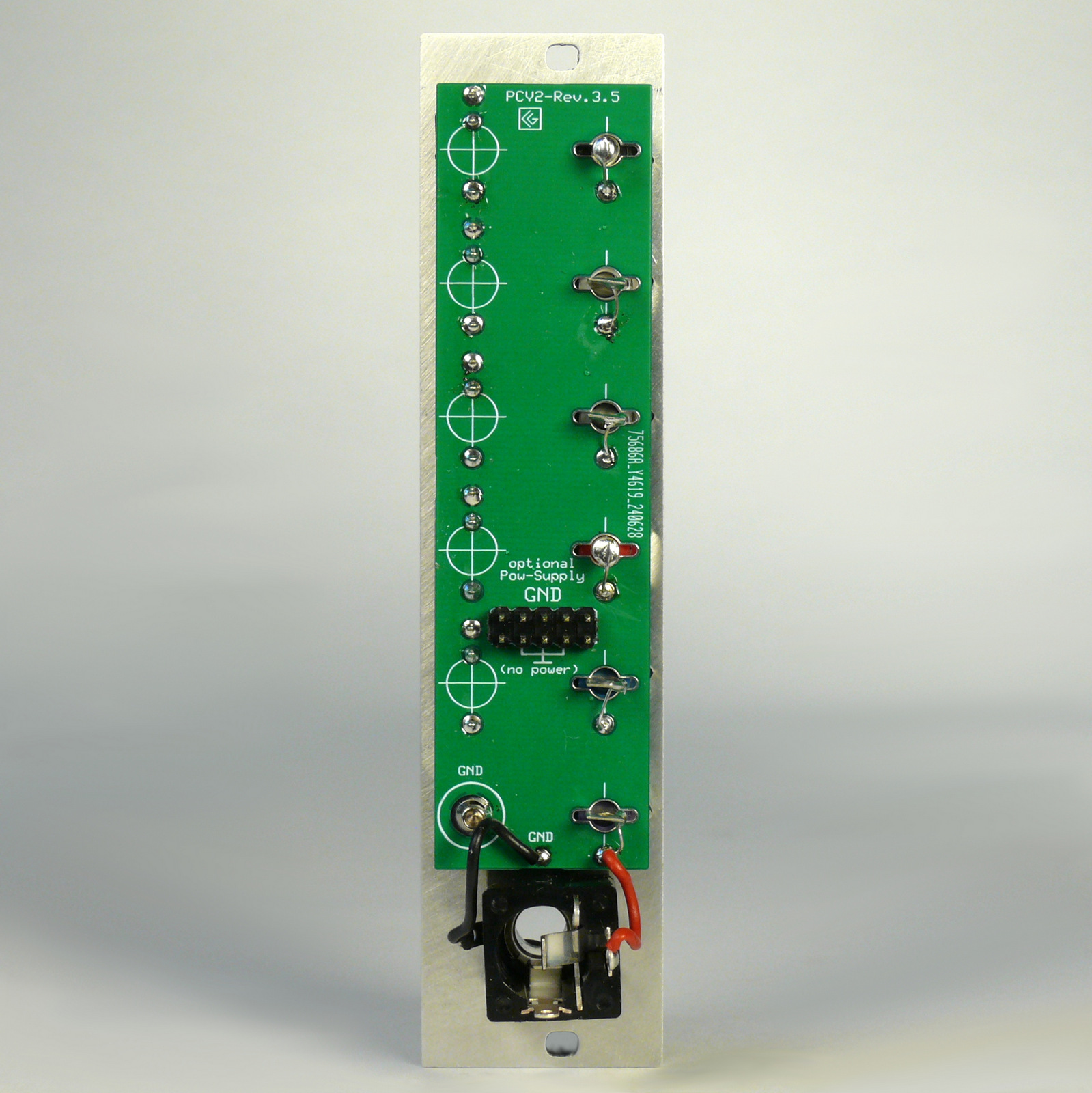

PCV2 new version backside view PCV2 new version backside view (Detail)

Now with additional header on the backside for grounding. The module ground can be optionally connected to the power-supply ground via ribbon cable.
Most CG-Products banana modules have no extra grounding socket. For connection to external devices a common ground connection must be ensured. If there isn’t already a ground connection via e.g. a common power supply, the PCV-2 provides a safe ground connection for interchange with minijack and/or 1/4′ jack.


PCV1

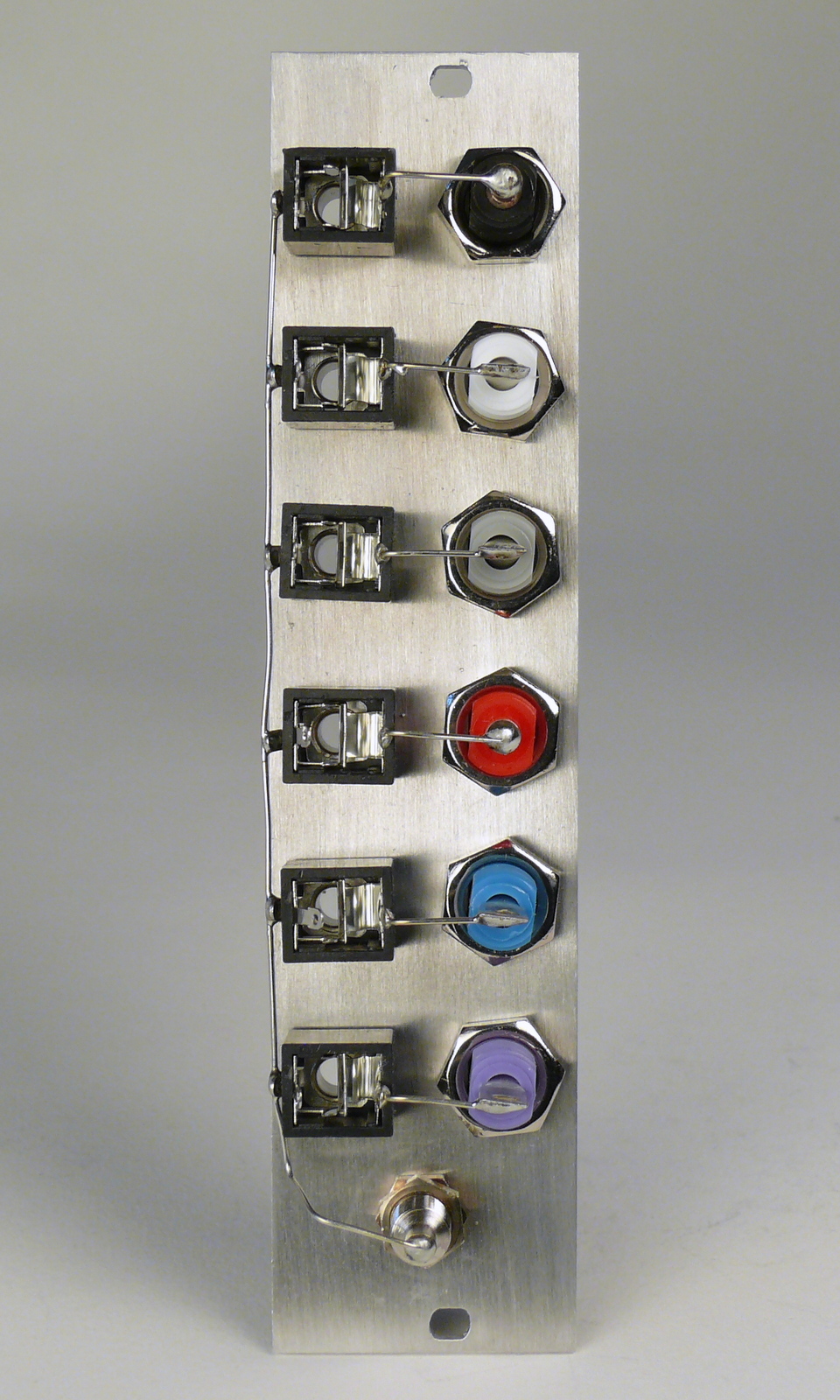

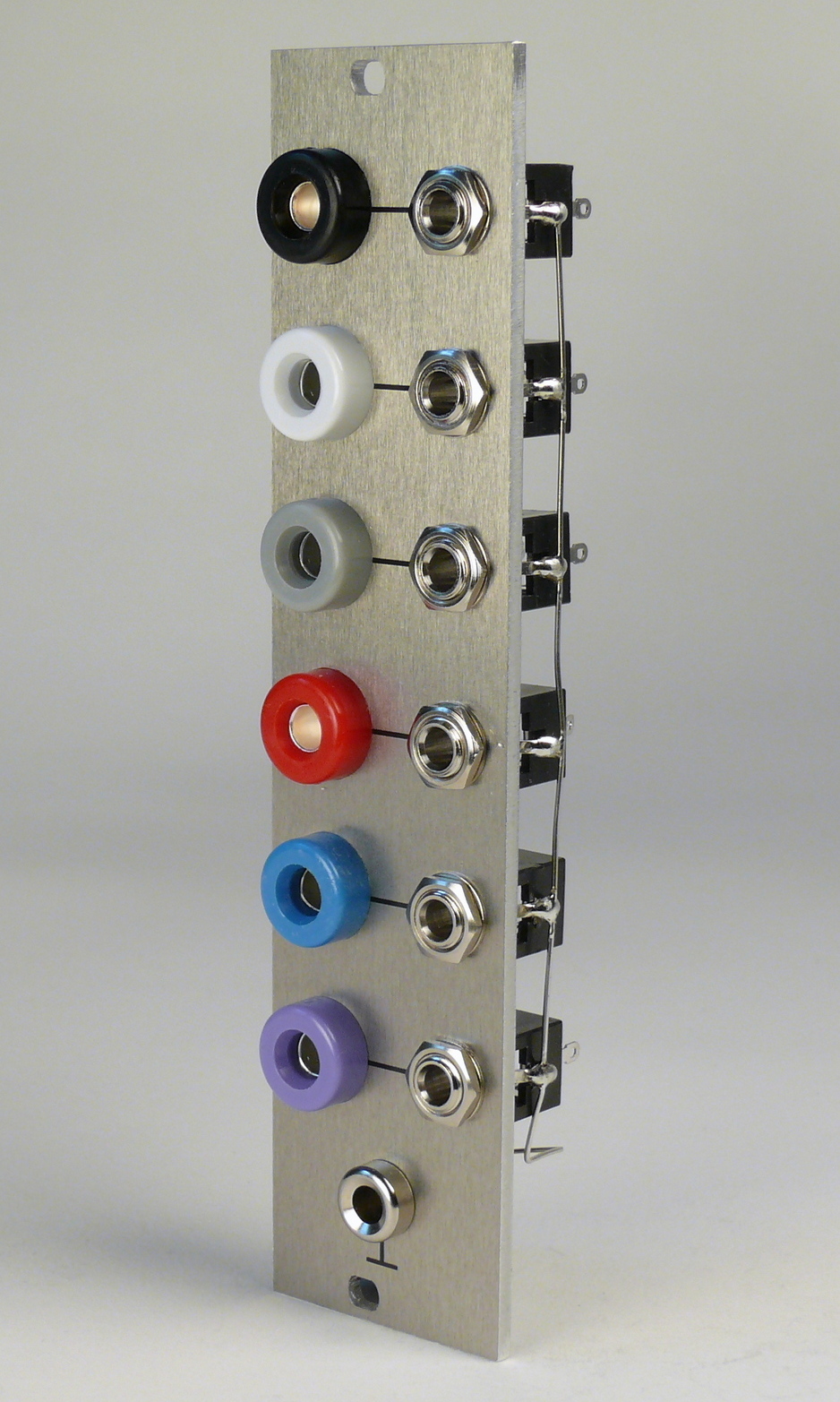

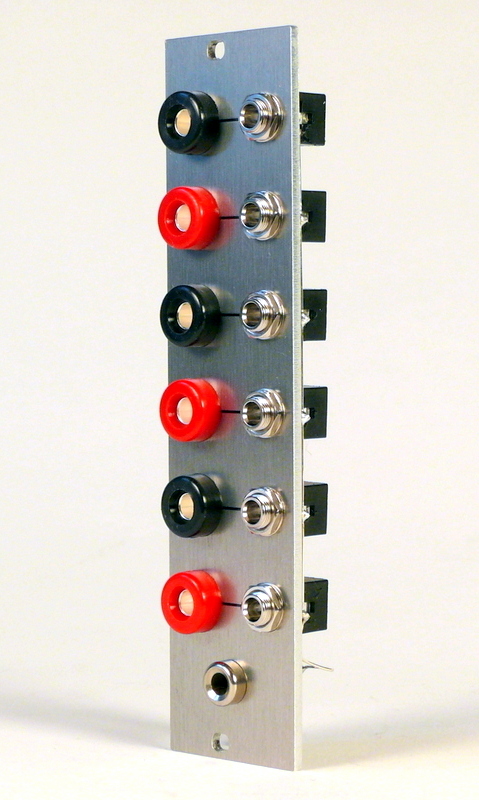

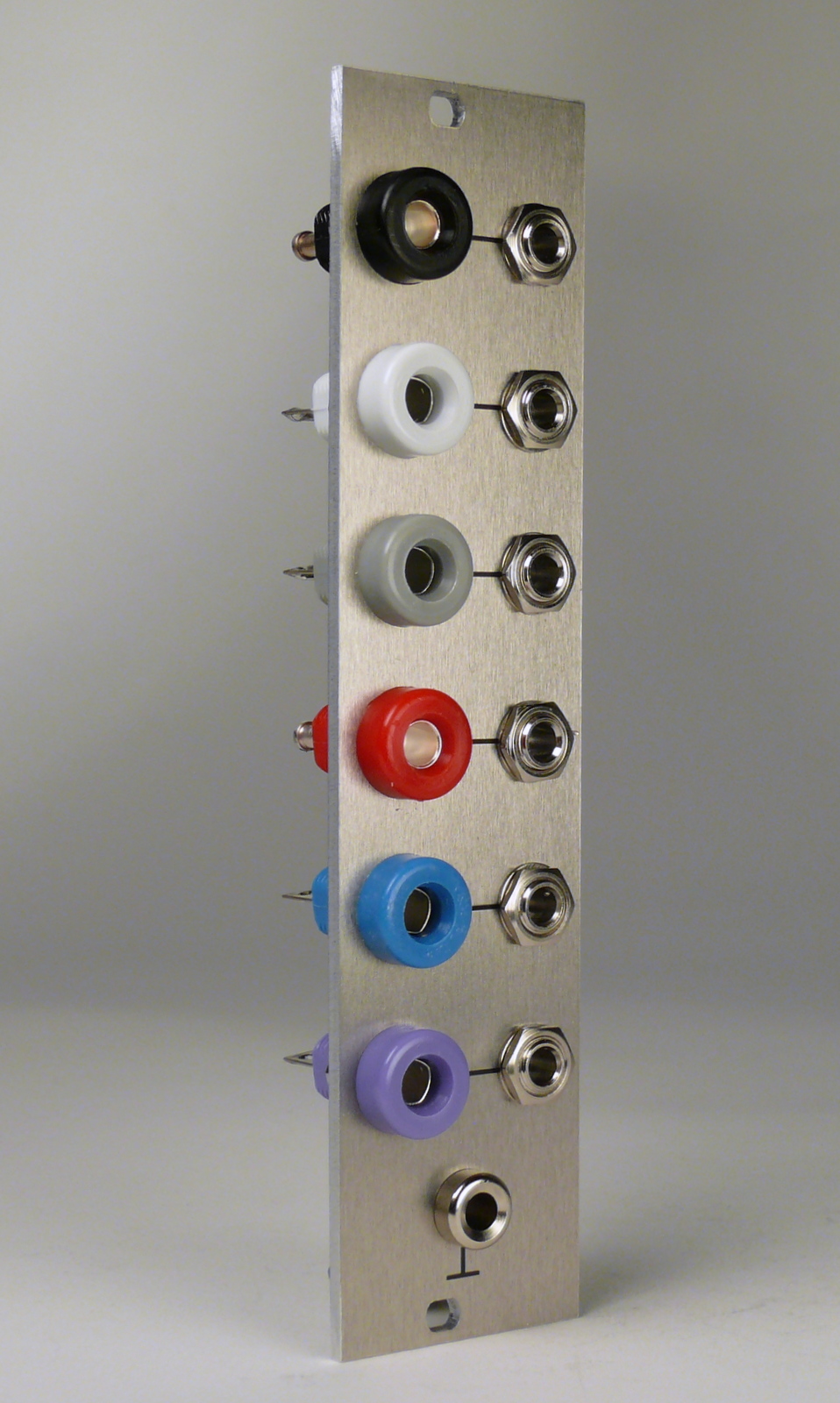

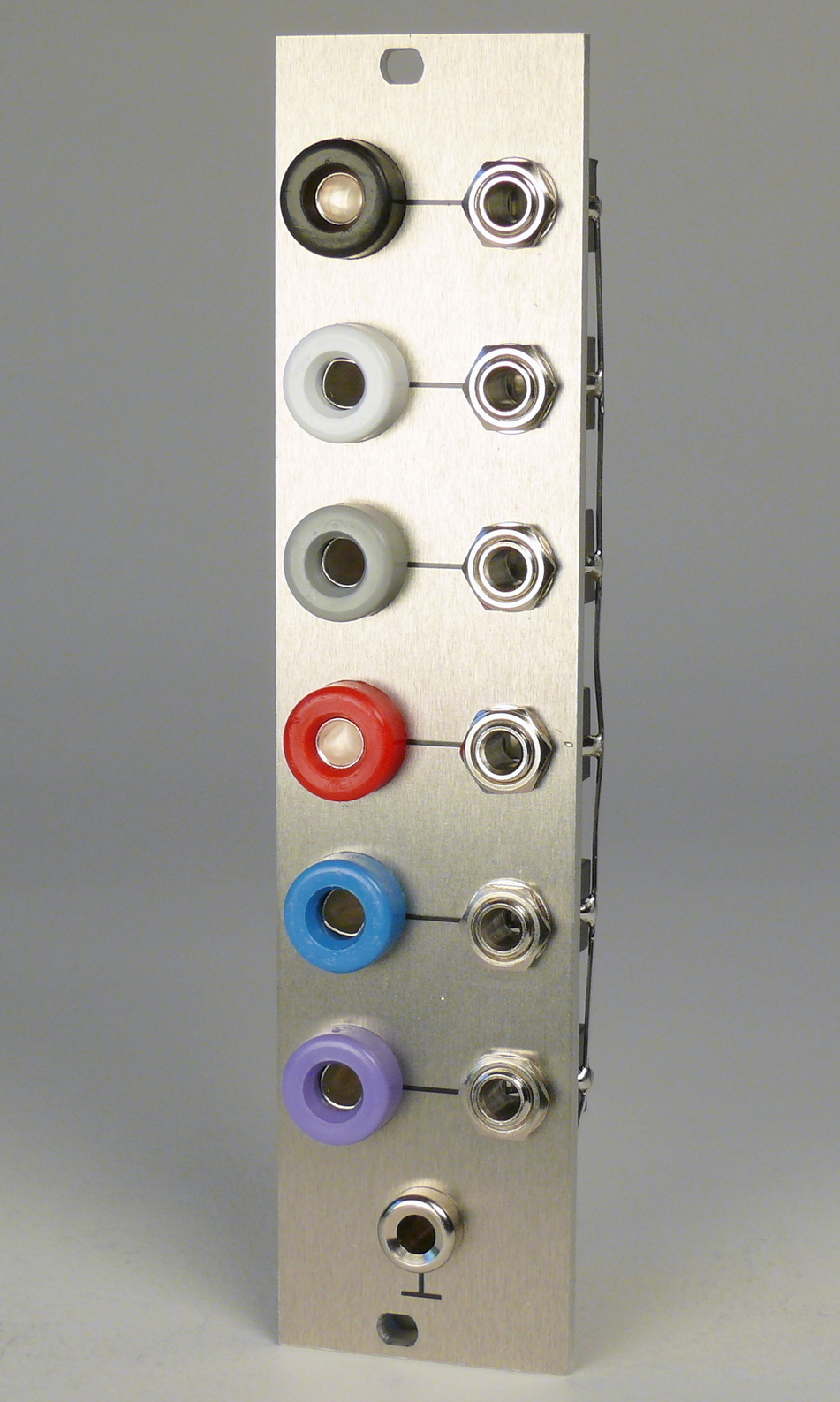

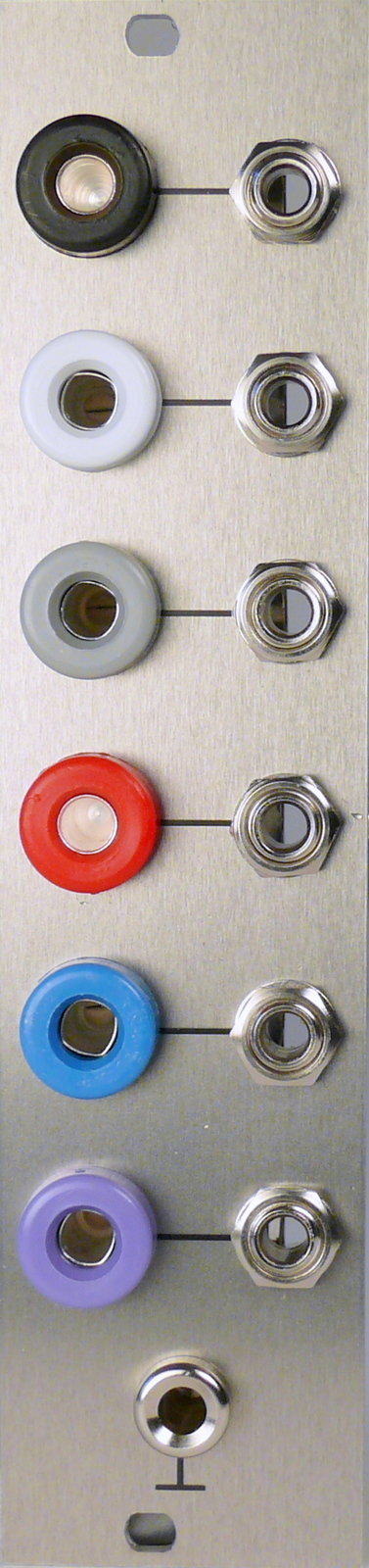

PCV1 frontal view

6x Banana Jack ↔ Minijack

1x Banana Ground

6HP

Dimensions: 128,5mm x 30,2mm

Depth: 18mm

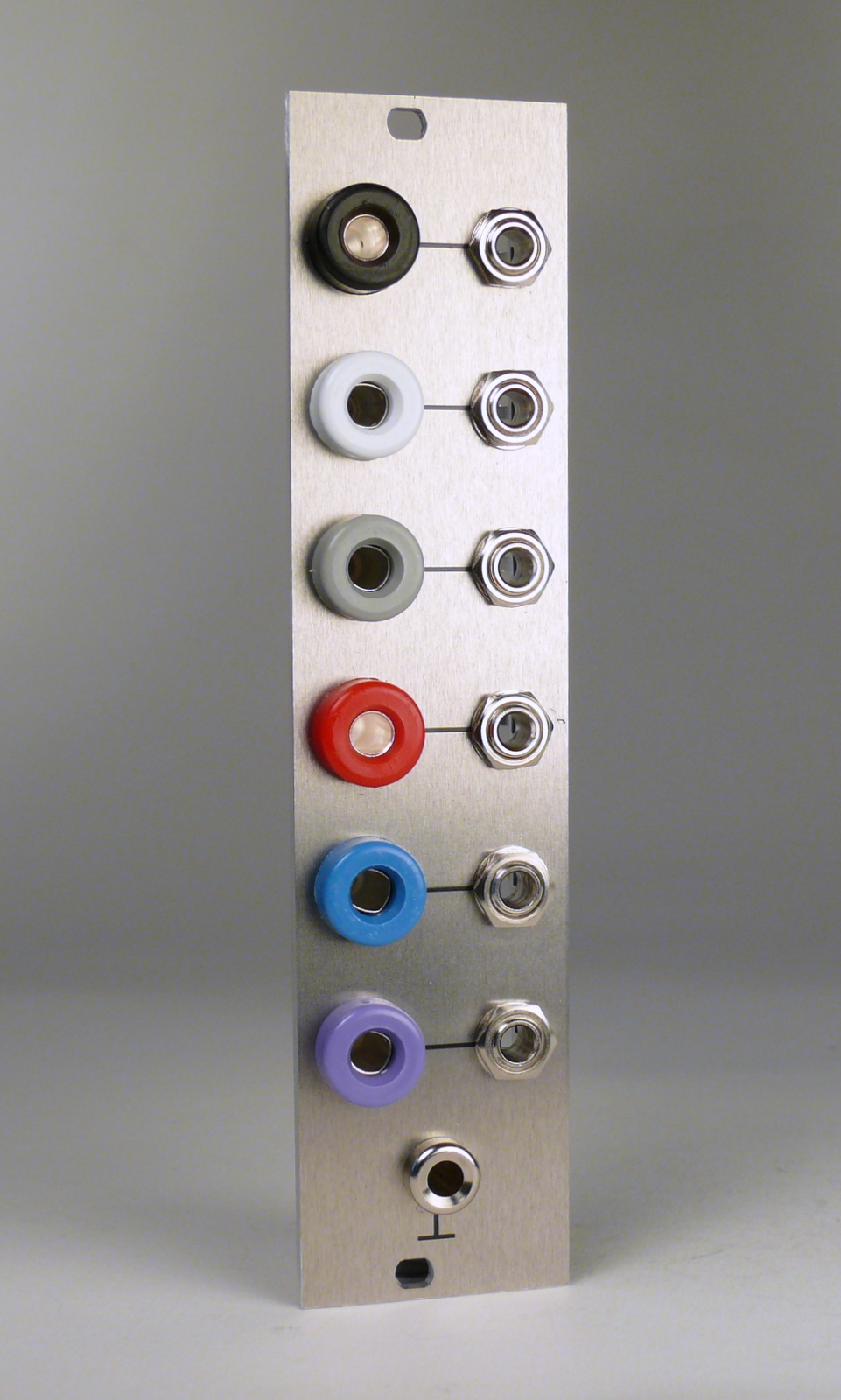

PCV1 right side view



PCV1 right side view



SchneidersLaden Logo
Reverb Logo

PCV2

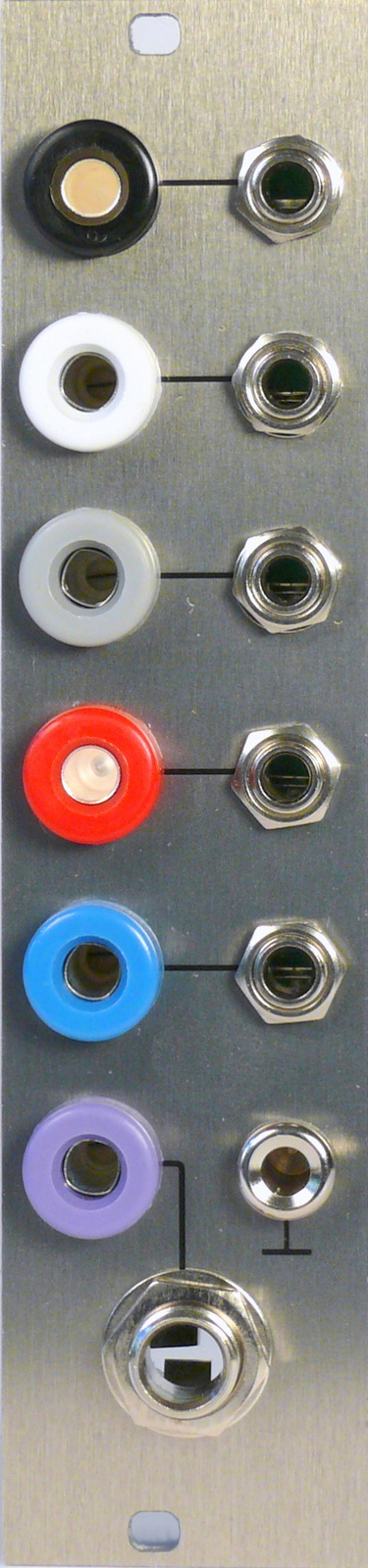

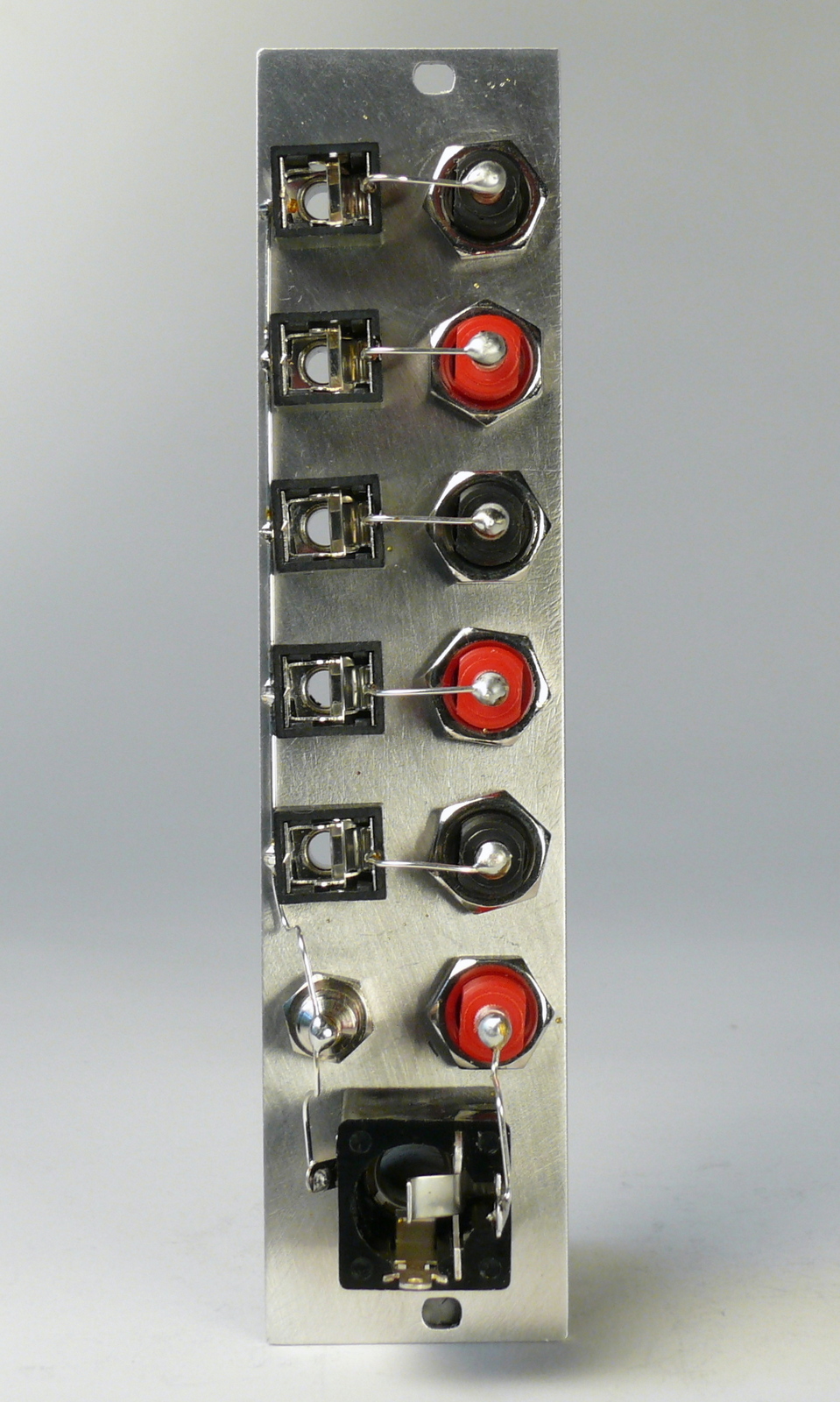

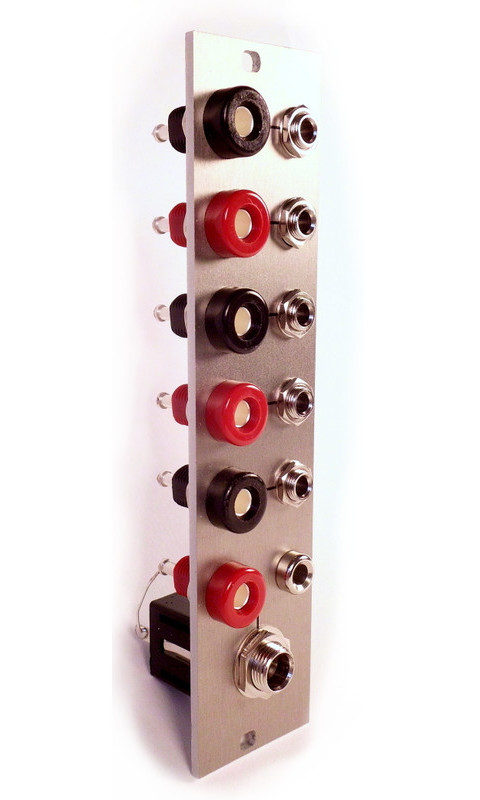

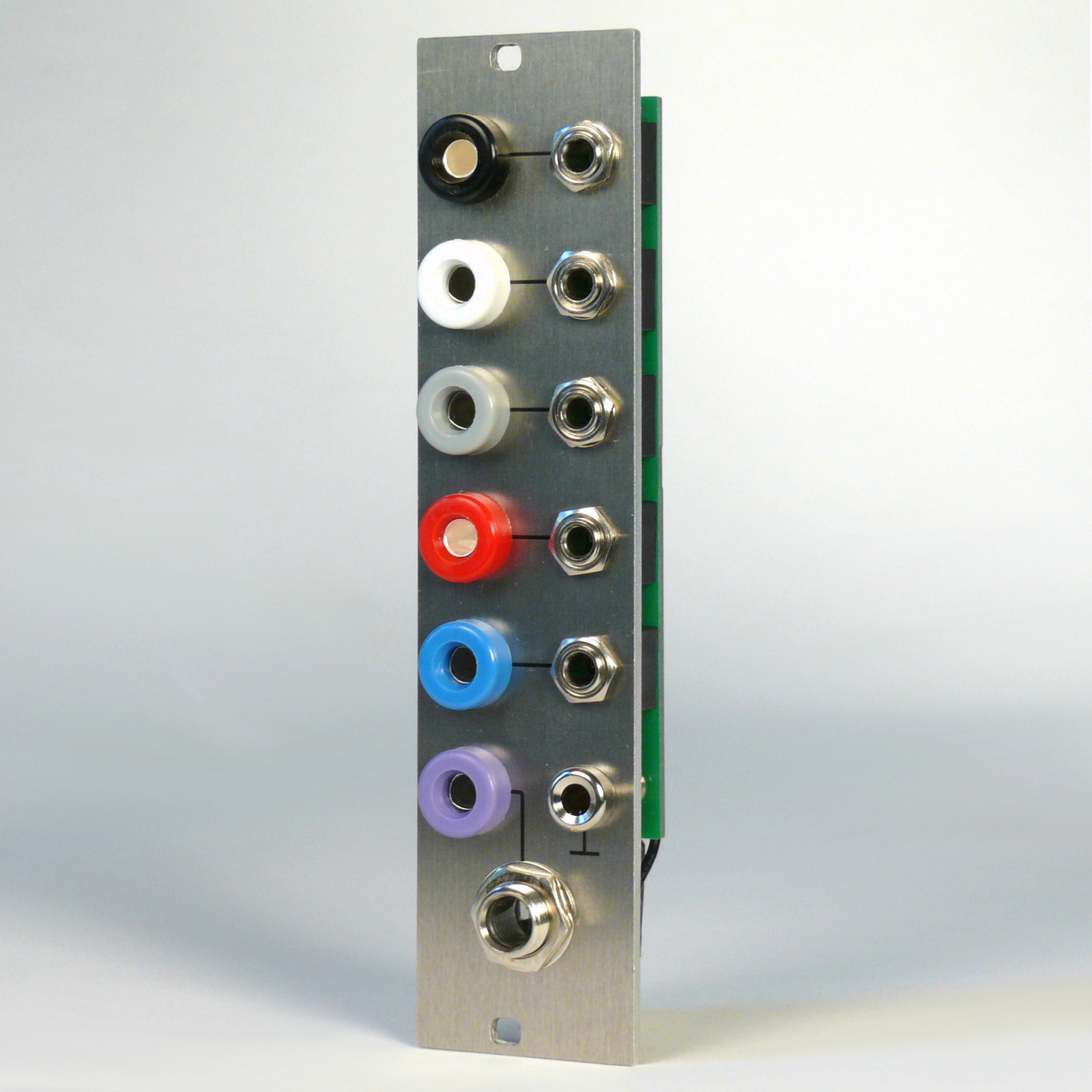

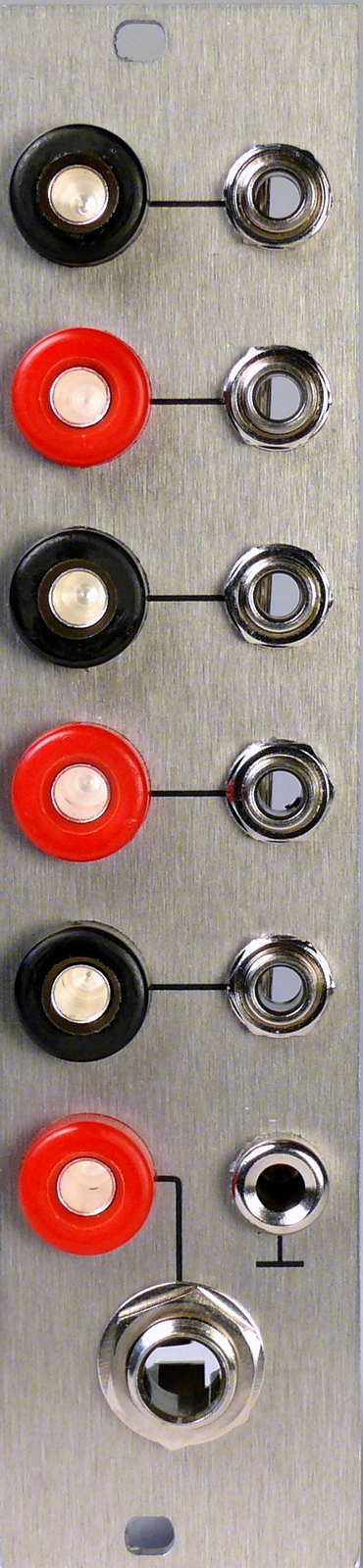

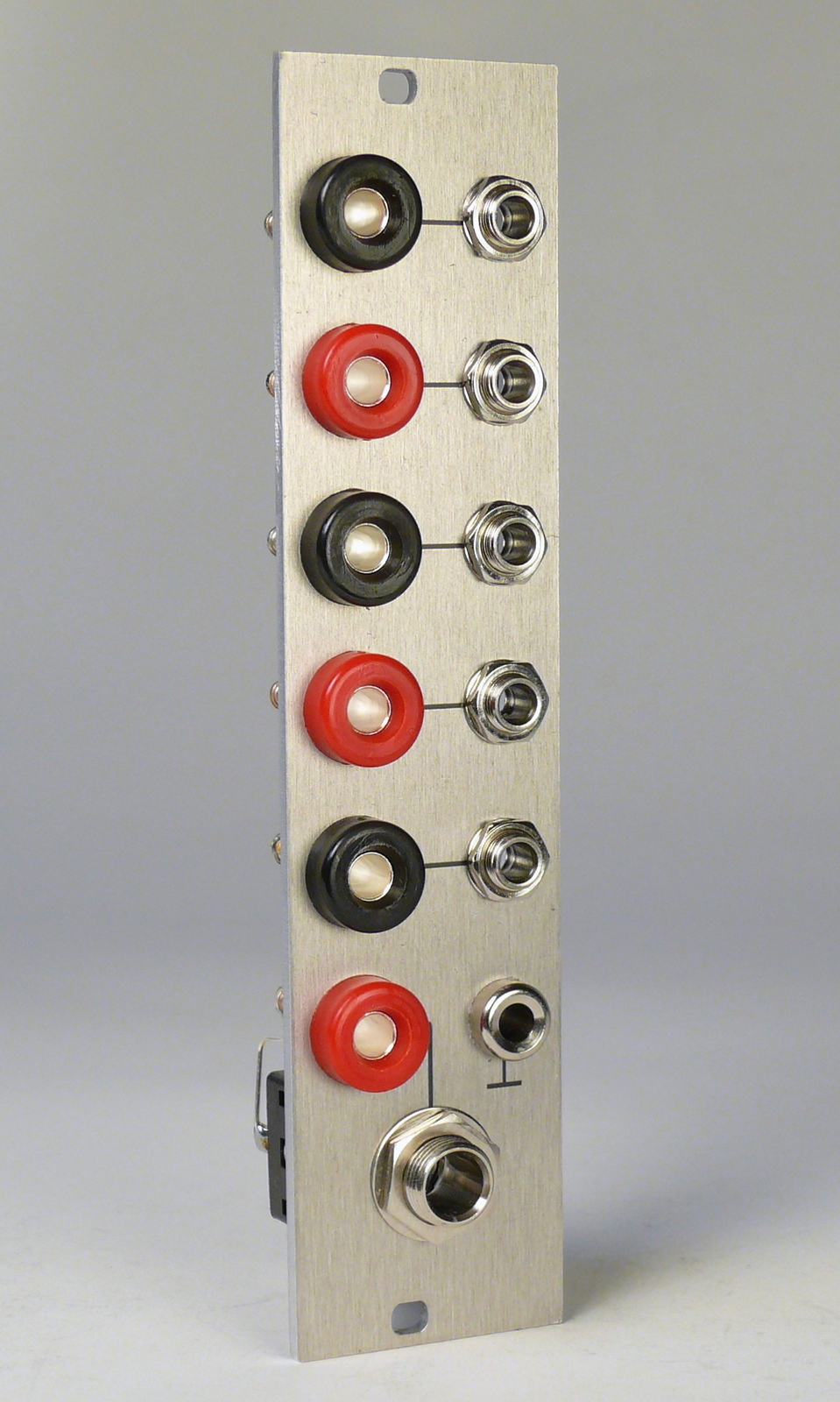

CG Products PCV-2 Patch Converter frontal view

5x Banana Jack ↔ Minijack

1x Banana Jack ↔ 6,3mm (1/4′) Jack

1x Banana Ground

6HP

Dimensions: 128,5mm x 30,2mm

Depth: 18mm

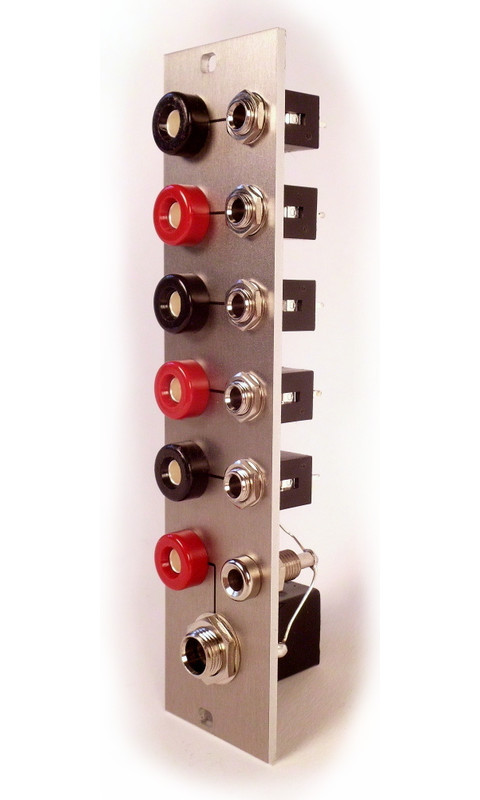

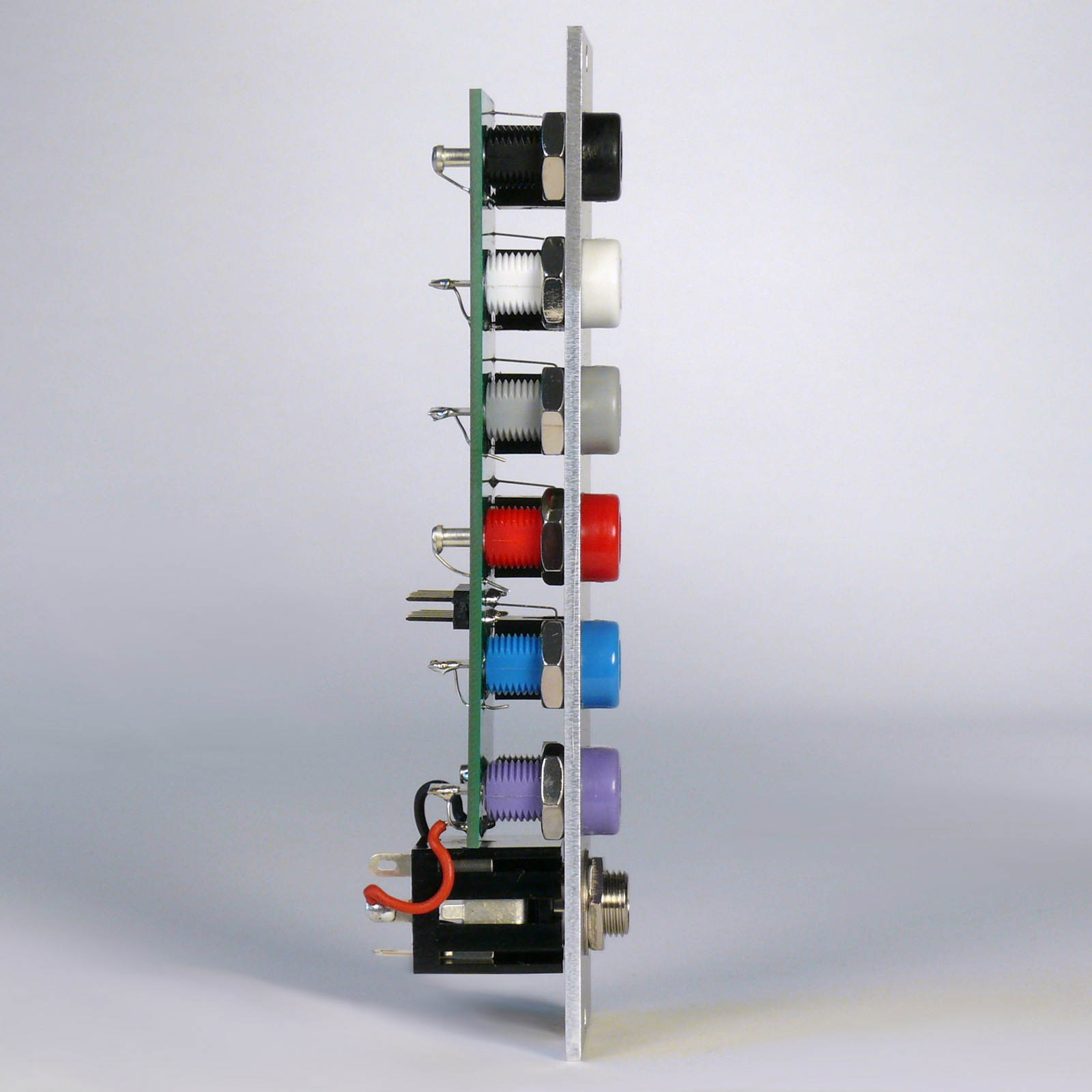

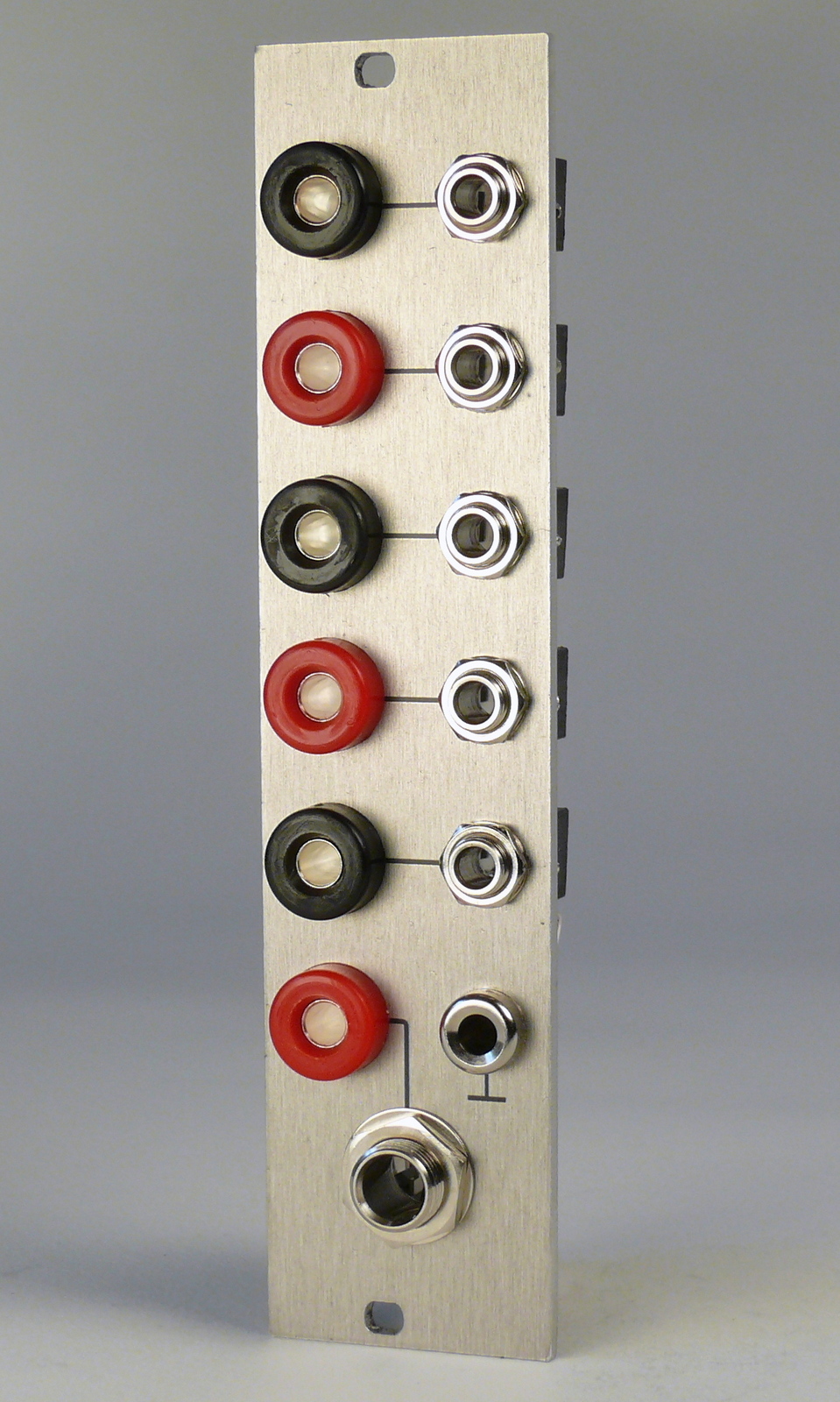

CG Products PCV2 patch converter side view right I



CG Products PCV2 patch converter side view right II



SchneidersLaden Logo
Reverb Logo

PCV3

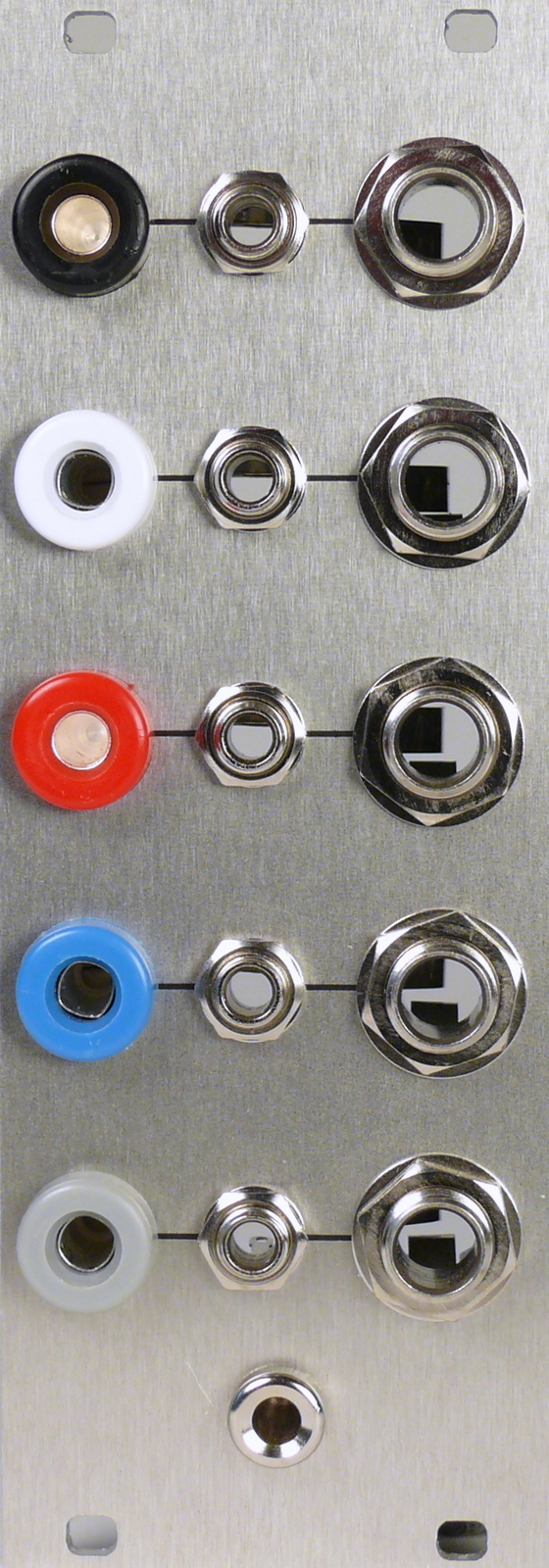

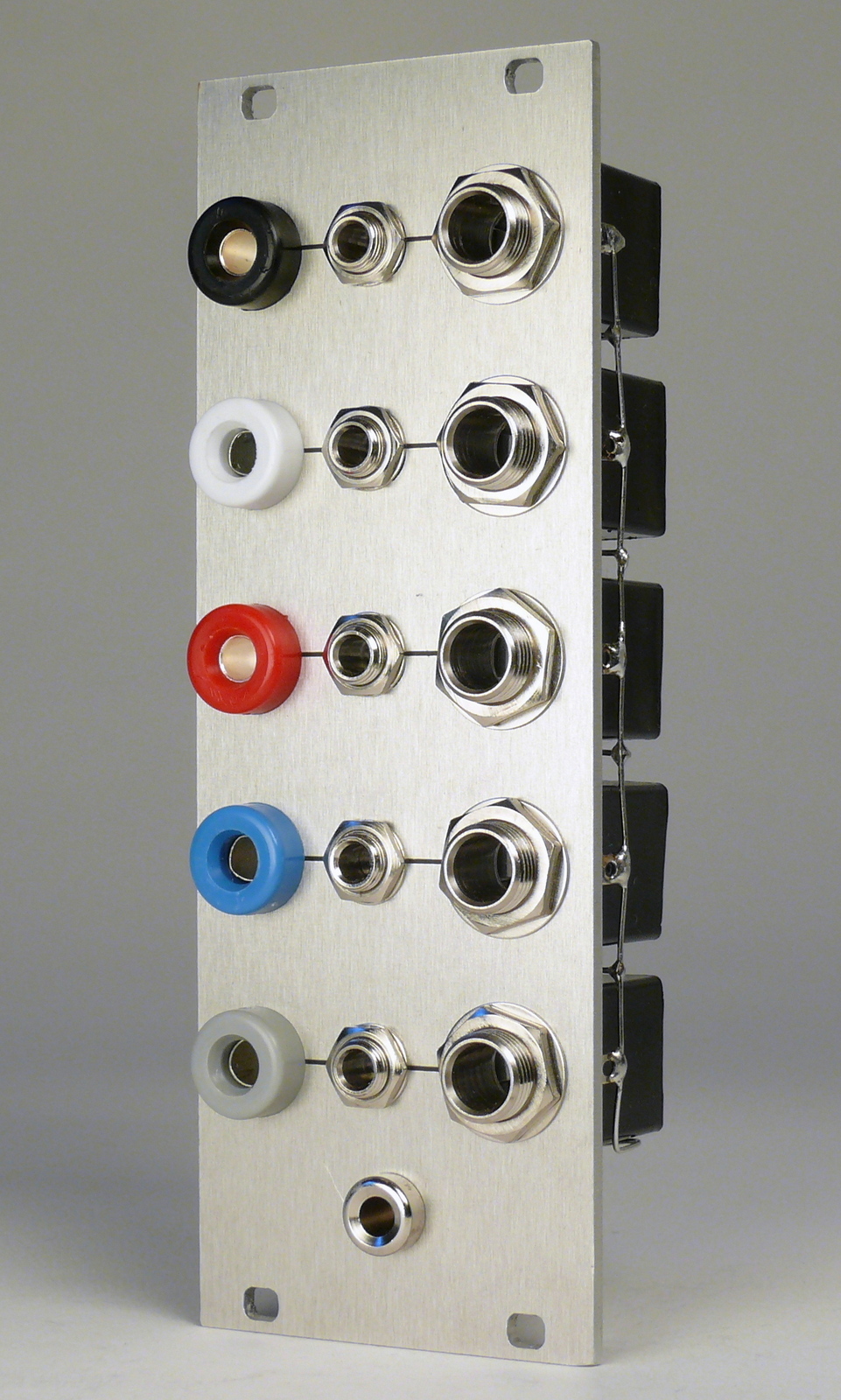

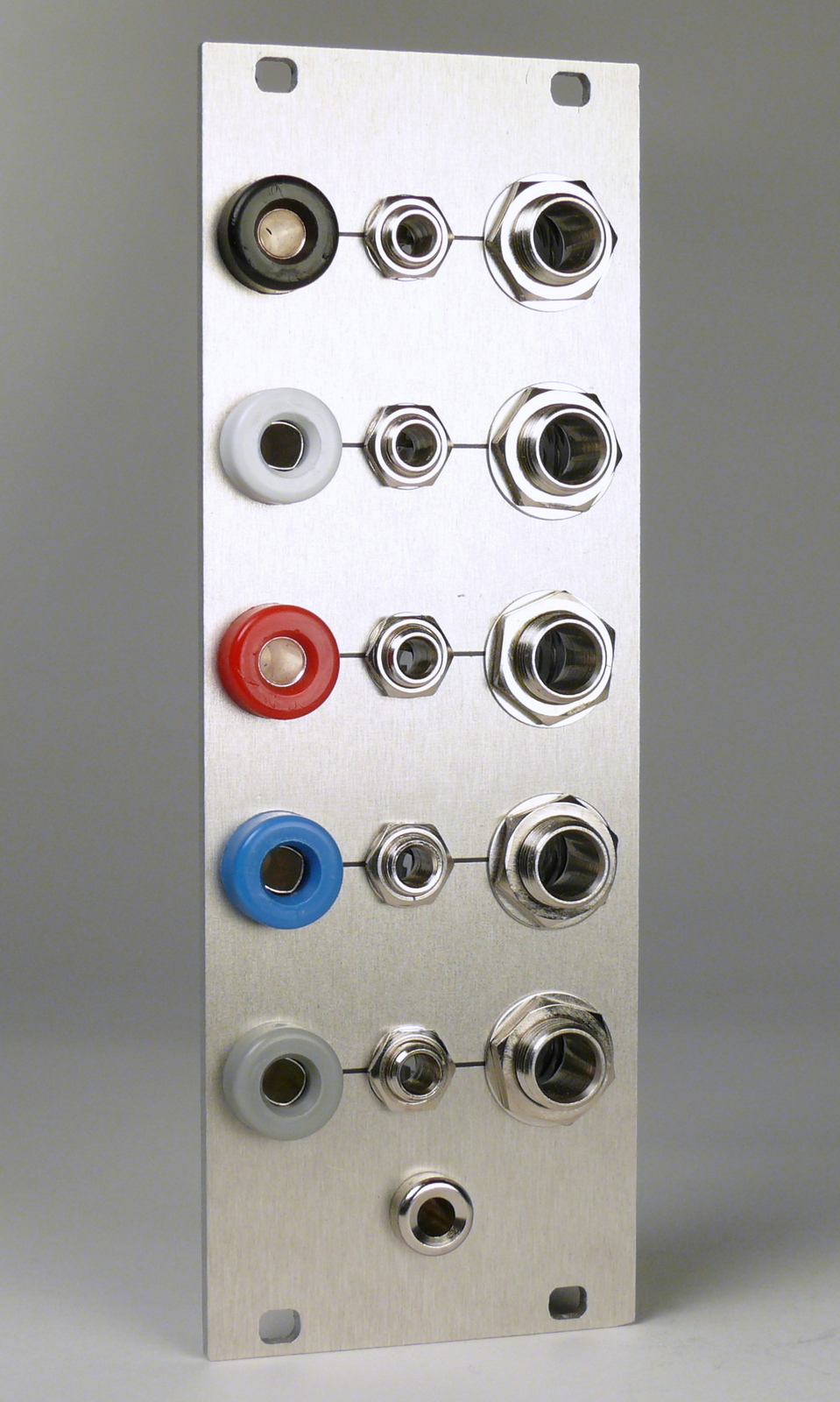

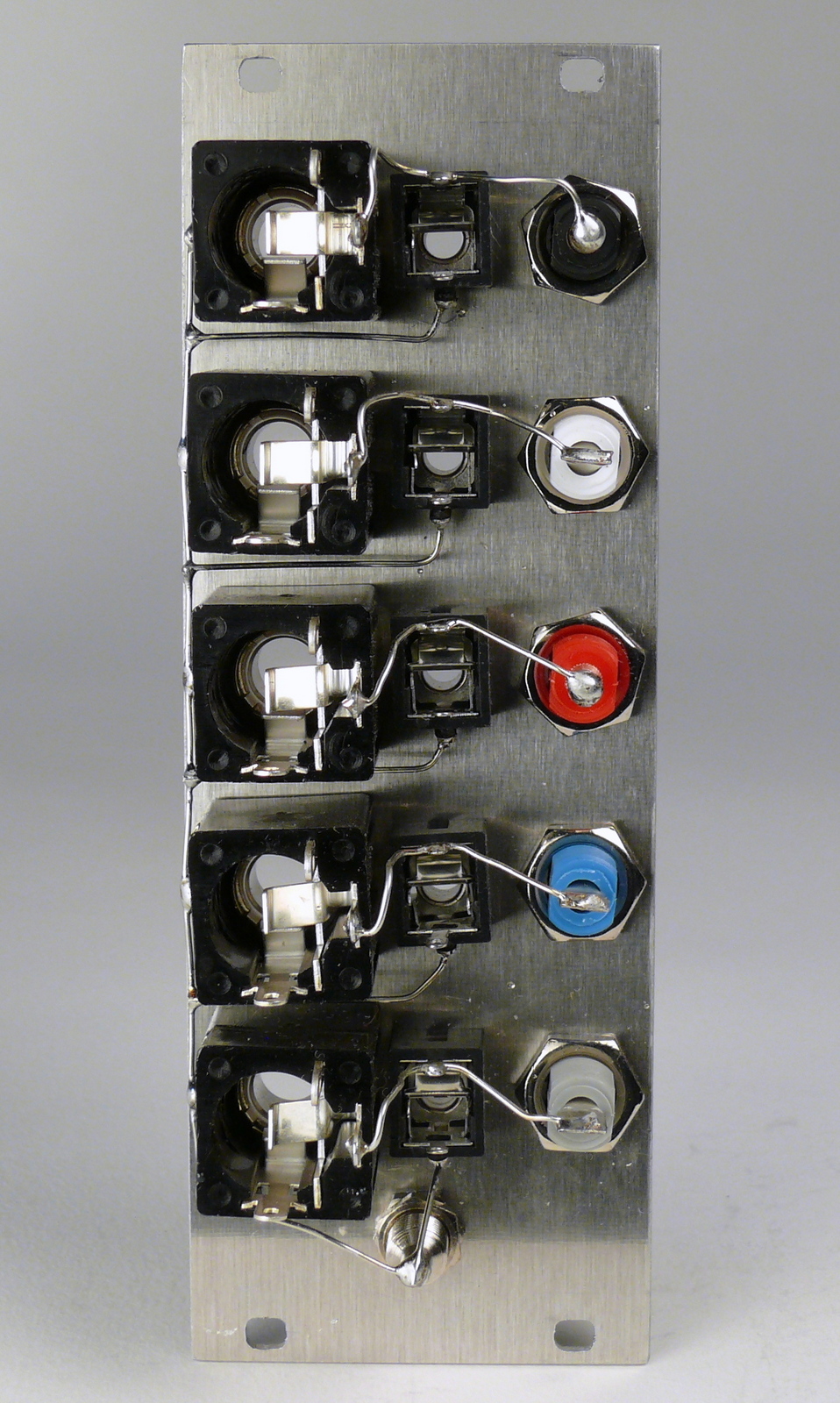

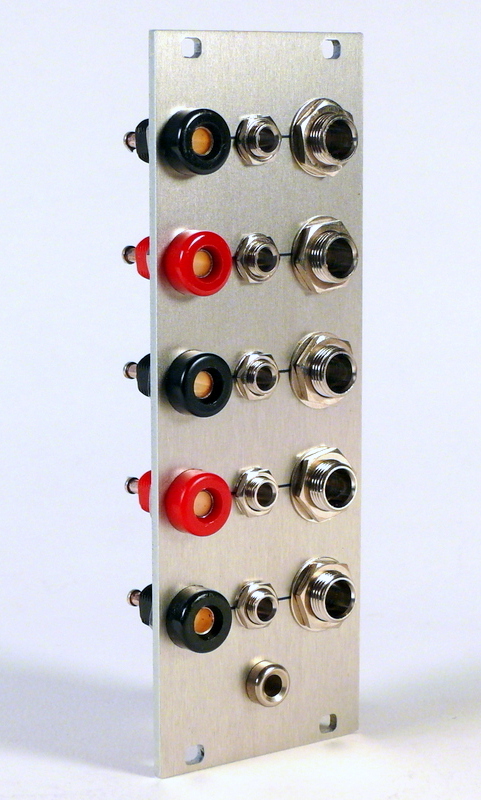

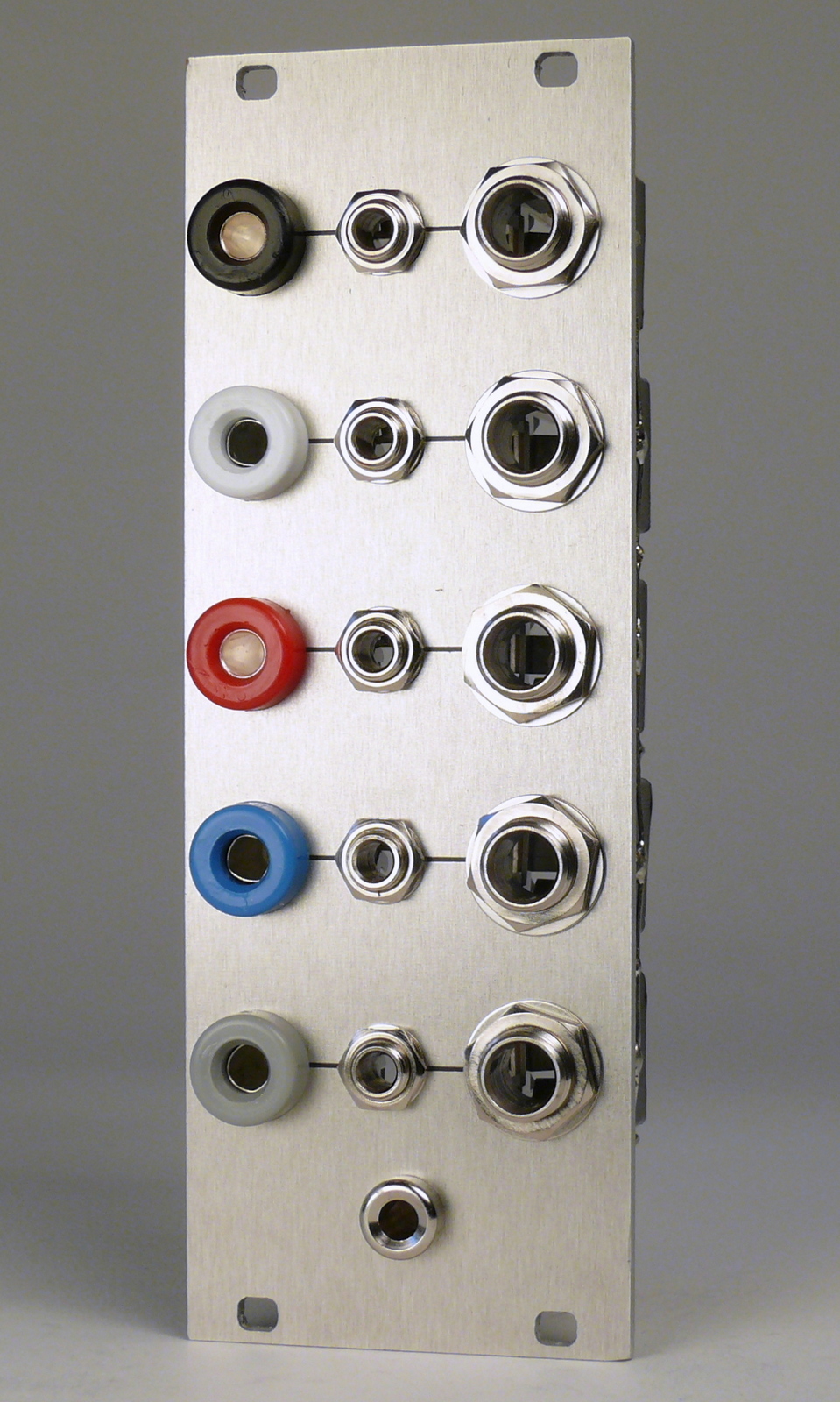

PCV3 frontal view

5x Banana Jack ↔ Minijack ↔ 6,3mm (1/4′) Jack

1x Banana Ground

9HP

Dimensions: 128,5mm x 45,5mm

Depth: 26mm

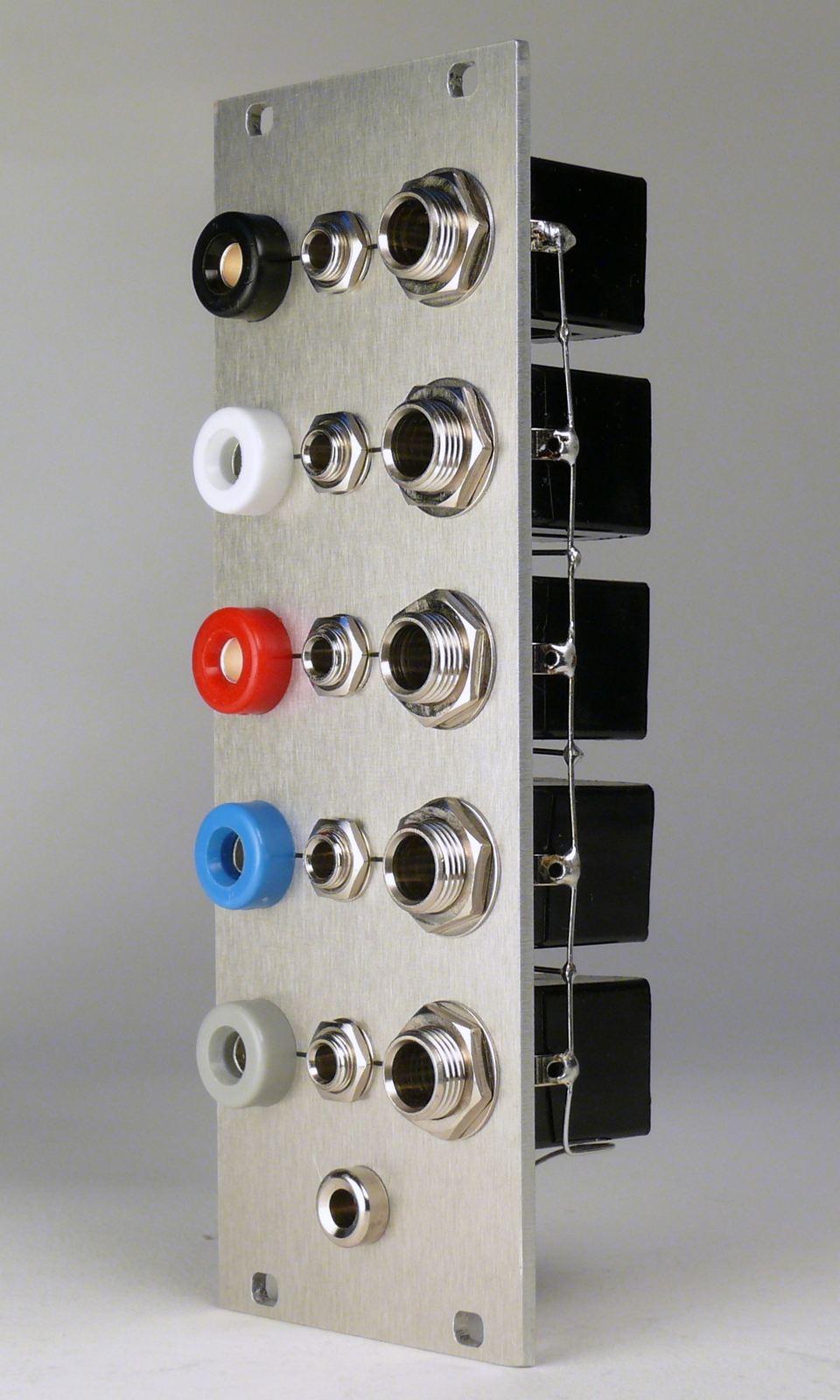

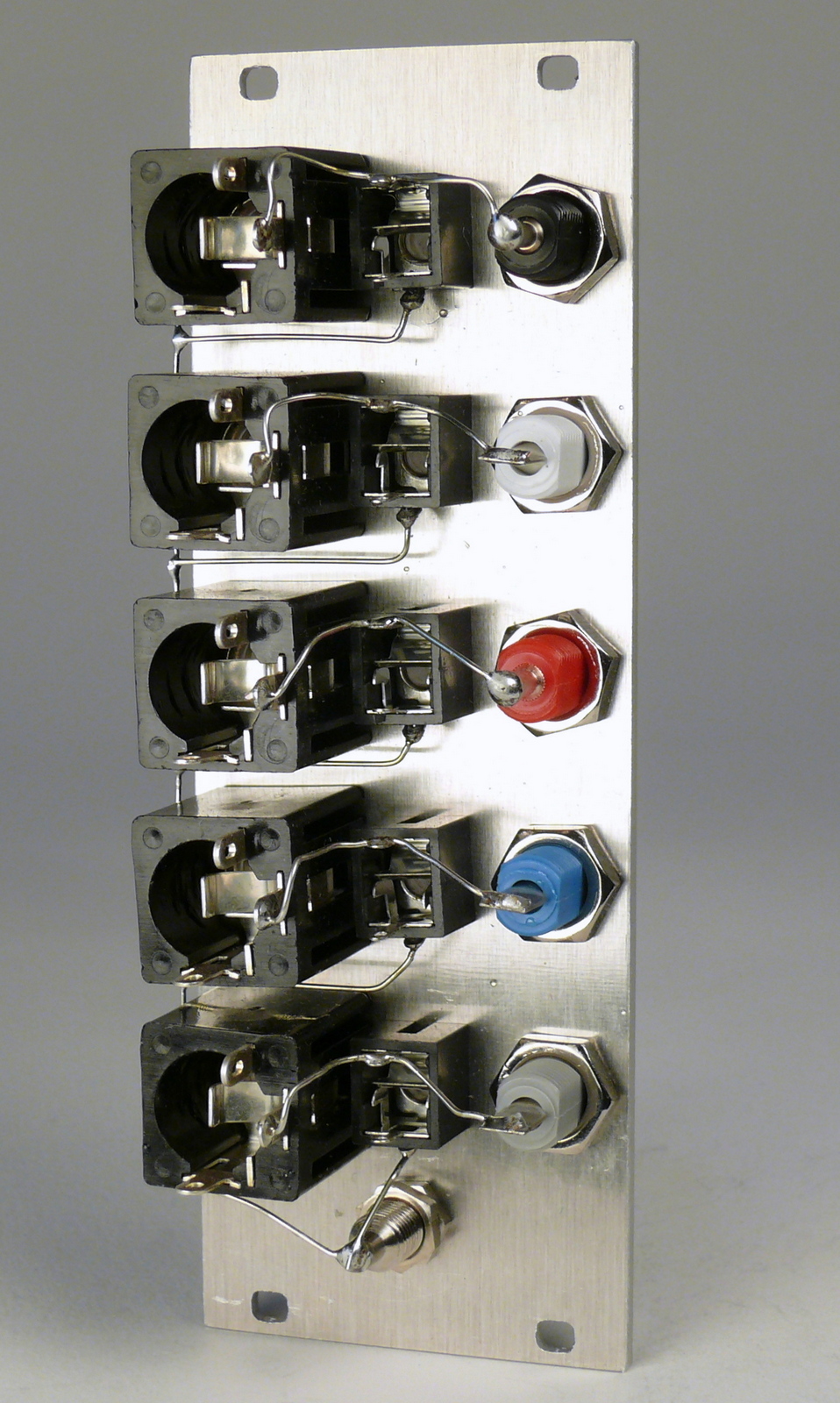

PCV3 right side view I



PCV3 right side view II



SchneidersLaden Logo
Reverb Logo
Please note:
The panels are made from untreated natural aluminium, hand printed and varnished.
Due to this manufacturing process, their surface may have little scratches or unregularities or may slightly differ in their color appearance.
